Algo 8186 SIP Horn Speaker (8186)

Algo 8186 SIP Horn Speaker (8186)

Regular price $670.00 CAD
Regular price Sale price $670.00 CAD
Sale Sold out

Algo 8186 Wideband IP Voice Paging Speaker 8186

USERGUIDE DOWNLOAD

OVERVIEW VIDEO

The 8186 is a weatherproof SIP compliant IP horn / loudspeaker for voice paging, loud ringing, and emergency / safety / security notification and alerting. The speaker is PoE and does not require an additional amplifier. Common application environments include: warehouse, factory (e.g., OSHA), production floor (e.g. food and beverage processing), utility plant, machine shop, garage, parking lot/outdoor yard, school playground and gymnasium, farm, bus or train terminal, etc.

Algo 8186 Wideband IP Voice Paging Speaker 8186 Overview

Wideband G.722 codec (HD voice) support in the speaker provides optimum speech clarity and intelligibility. Voice paging and emergency announcements can be easier to understand with wideband, particularly in a noisy environment. The wideband capability of the horn speaker improves STI-PA intelligibility scores, which is important in meeting NFPA 72 requirements and the NEMA SB-40 2010 standard for emergency communication in education.

The 8186 speaker registers as a third party SIP endpoint with all leading premise or hosted UC providers. For multiple speaker deployments, additional devices do not require a SIP license. A single registered speaker can be configured to multicast to any number and mix of additional Algo speakers, strobes and/or paging adapters as required, providing cost-effective scalability using a minimum of network traffic. For multicast page applications, zoned paging is supported as a SIP extension or as a keypress selectable zone.

Benefits:

  • Superb audio clarity and intelligibility
  • Network managed and supervised SIP and multicast endpoint
  • PoE (802.3af) for plug and play network connectivity - no additional amplifier needed
  • Eliminates narrowband FXS port or ATA
  • Multicast to scale from one to many speakers
  • Multifunctional speaker for voice paging, loud ringing, emergency notification alerting and bell scheduling applications
  • Compatible with all varieties of Algo speakers, paging adapters and strobes for more comprehensive alerting solution requirements
  • Suitable for outdoor and wet environments when properly installed with included mounting gaskets
  • Three axis rotation for widest range of vertical and horizontal adjustments - wall or ceiling mount

Algo 8186 Wideband IP Voice Paging Speaker 8186 Features and Specifications

  • Wideband G.722 codec support for HD Voice
  • Multicast receive or broadcast capability
  • Mix with any number and model of Algo speakers, strobes and/or paging adapters using multicast (e.g. 8128, 8180, 8186, 8188, 8301, 8373) for a complete voice paging system
  • Syn-Apps SA-Announce
  • SIP compatibility with all leading UC vendors including: Avaya, Broadsoft, Cisco, Digium/Asterisk, Mitel, Metaswitch, NEC, and Polycom to name a few
  • Configurable through web interface
  • Auto-provisioning (i.e., TFTP, FTP, HTTP)
  • SNMP supervision
  • Internal memory of 1GB for uploaded WAV files or recorded messages
  • Multiple SIP registrations for Ring (10) and Page (50) extensions

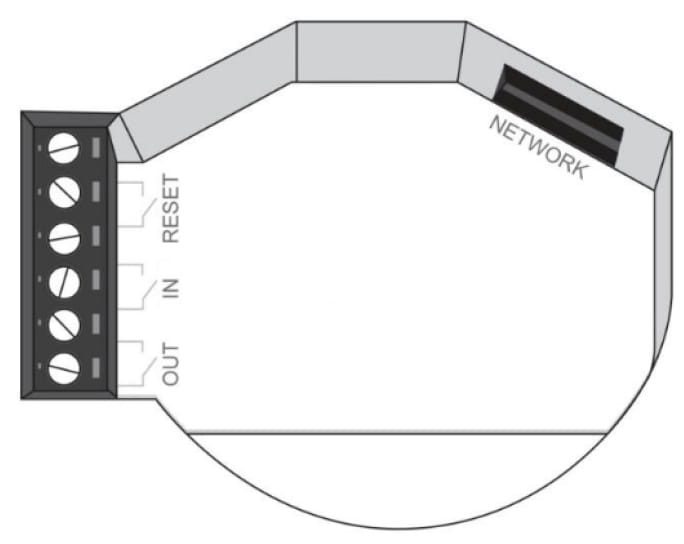

  • Programmable relay (dry contact) output
  • Programmable relay (dry contact) input for illuminated and supervised wall button
  • UL/CSA, FCC, CE
