The Algo 8301 Overview

USERGUIDE DOWNLOAD

The 8301 is a PoE IP Paging Adapter for integrating legacy analog voice paging systems into a premise or hosted UC environment as a third party SIP endpoint. The Adapter eliminates the need for an ATA or FXS port. Features include G.722 wideband support with isolated and balanced line output for optimum clarity and intelligibility without hum or noise.

To the network side, the 8301 is a SIP endpoint for easy integration with an IP telephone system. It is configured using the intuitive web interface or provisioning capabilities.

On the paging side, the 8301 provides balanced audio output using both an XLR connector and terminal block for easy connection to an amplifier, along with a dry contact closure if required by the amplifier.

Further speech enhancement is provided by automatic level control, choice of frequency masks, and optional speech compression. Output level is compatible with consumer, commercial, and pro-audio amplifiers requiring either -10 dBm, 0 dBm, or +4 dBu line level.

An audio input (also balanced and isolated to prevent equipment ground loops) can be used for auxiliary input or insertion of the 8301 between existing equipment. This allows IP based paging or emergency notification to take control of the amplifier as necessary.

Multicast capability allows scalability for multiple amplifiers as well as integration with any number of Algo IP speakers, strobes and adapters (e.g. 8128, 8180, 8186, 8188, 8189, 8301, 8373) for a complete voice paging system.

The Algo 8301 Emergency Notification Alerting

An auxiliary input allows an optional wall button (e.g., 1202 Call Button as shown) or external switch to initiate a SIP call or play a WAV file stored in the adapter's memory for notification alerting.

A WAV file may also be played by dialing the adapter's Ring extension, configured for ring/announcement activation only. Up to 10 Ring extensions are available to register on a single adapter (or 8186, 8188) for applications requiring different types of emergency notification alerting (e.g., lockdown, evacuation, etc.). A Call To Cancel feature can be configured in the 8301 to allow emergency alerting to play continuously for the duration of the event, until a designated extension registered to the speaker is called to stop the alert. Any combination and number of Algo IP endpoints can receive a multicast for such emergency alerting.

The Algo 8301 Bell Scheduler

The 8301 also features a Scheduler for automating the playing and multi-casting of WAV file tones, bells, announcements, music, etc. The Scheduler uses the NTP server to synchronize with IP clocks, and is ideal for schools (i.e., class changes, recess, playing an anthem, etc.), retail and healthcare announcements (e.g., store closing, visiting hours, etc.), and workplace shift changes, breaks, etc.

The Algo 8301 Benefits

Superb audio clarity and intelligibility - no hum or noise
Network managed and supervised SIP and multicast endpoint
PoE (802.3af) for plug and play network connectivity
Eliminates narrowband FXS port or ATA
Multicasting capability to include Algo IP speakers and strobes
Easy and intuitive web interface to configure scheduled announcements, tones, bells, music, etc.
Synchronization of scheduler and IP clocks using NTP server
Linux appliance; no dependency on software or PC for bell scheduling

The Algo 8301 Features:

Wideband G.722 codec support for HD Voice
Isolated and balanced audio output
Automatic level control
Multicast for cost effective scalability - mix with any number and variety of Algo speakers, strobes and paging adapters (e.g. 8128, 8180, 8186, 8188, 8189, 8301, 8373) for a complete voice paging system
Multicast receive or broadcast capability
SIP compatibility with all leading UC vendors including Avaya, Broadsoft, Cisco, Digium/Asterisk, Mitel, Metaswitch, NEC, and Polycom to name a few
Configurable through web interface
Auto-provisioning (i.e., TFTP, FTP, HTTP)
Internal 1GB memory for uploaded WAV files or recorded messages for notification alerting and scheduled tones/announcements
Multiple SIP registration for Page (50) and Ring (10) extensions
DTMF zone selection
Programmable relay (dry contact) output
Programmable relay (dry contact) input or illuminated and supervised wall button
3.5mm Aux Input jack for playing and multicasting music
UL/CSA, FCC, CE

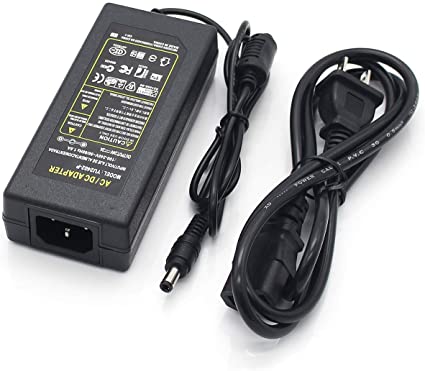

Algo 8028 24V Power Supply (75-00004)
